The DVI/HDMI in to Mini DisplayPort out converter is a simple, yet effective solution for Mac and PC users. DVI sources such as PCs with high-resolution graphics card and stereo audio can be connected easily to the next generation Apple LED Cinema Displays with Mini DisplayPort.

This HDCP complaint converter also has an auto-EDID feature built-in, that adapts to maximum resolution depending on users display. Ideally used in environment such as classrooms, lecture halls and corporate boardrooms where DVI/HDMI to Mini DisplayPort signal conversion is critical for training and presentation purposes.

FEATURES
• Convert DVI/HDMI signals to high-resolution Apple Cinema Displays using Mini DisplayPort
• Supports data rates to 6.75Gbps
• Full HD 1080p(1920x1080@60Hz)
• Conforms to HDMI 1.3 specifications (Deep color, HD lossless audio formats & Lip Sync)
• HDCP & EDID compliant
• Stereo audio port for DVI
• Digital audio through HDMI*
• Metal enclosure
• 5VDC external power supply included

SPECIFICATIONS
Interface:

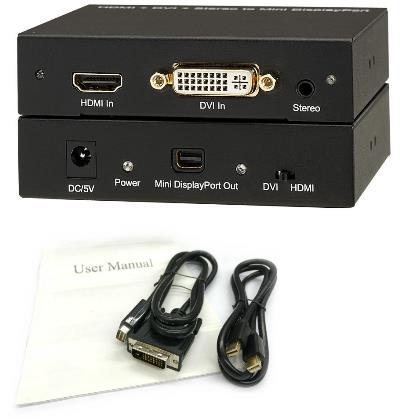

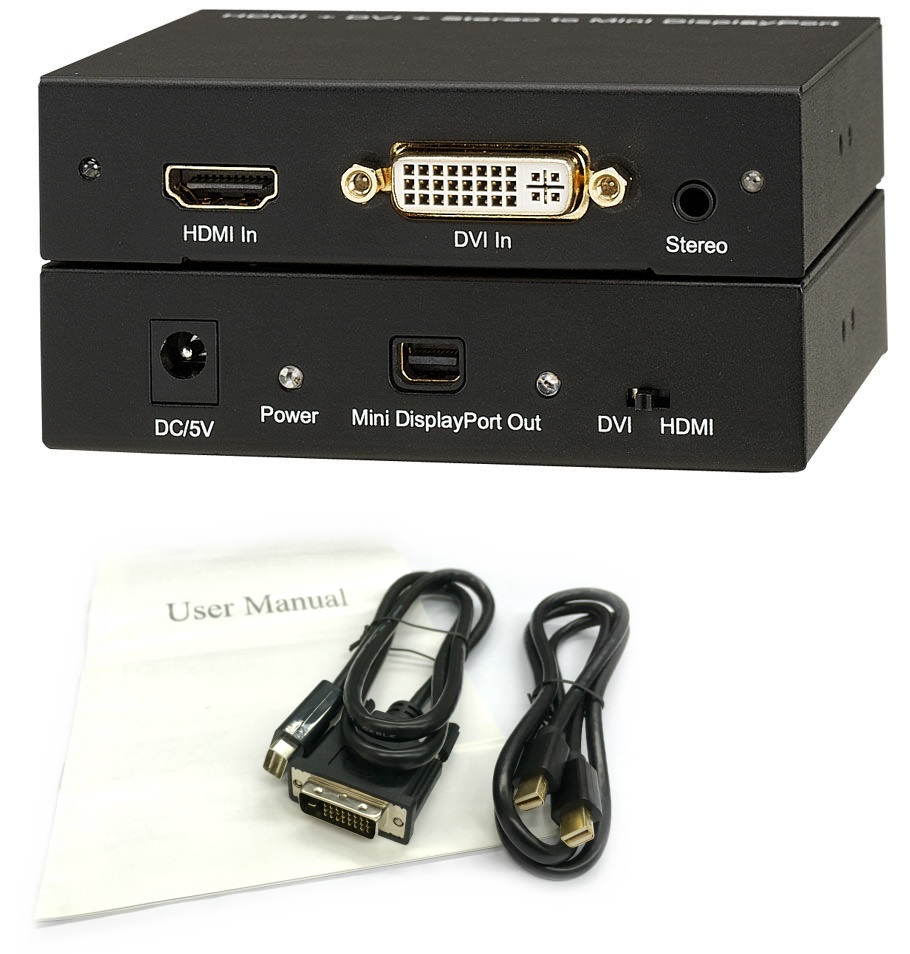

• Input: HDMI x1/DVI-I x1/3.5mm Stereo x1
• Output: Mini DisplayPort x1
Video Amplifier Bandwidth: 2.25Gbps/225MHz
Vertical Frequency Range: 50/60Hz

Maximum Resolution:
• HDMI: 1920x1080p@60Hz
• DVI: 1920x1200@60Hz
Power Supply: 5V DC@2A
Power Consumption: 5W
Storage Humidity: 5% to 90 % RH (no condensation)
Dimensions: 4”x4”x1” (102x102x25mm)
*Note: Audio support compatible with MacBook (Late 2010 release), MacBook Pro 13 /15 /17 inch (Mid 2010 release), iMac 21.5/27 inch (Early 2010 release), MacBook Air 11 /13 inch (Mid 2010 release), Mac Mini and Mac Pro (Mid 2010 release
