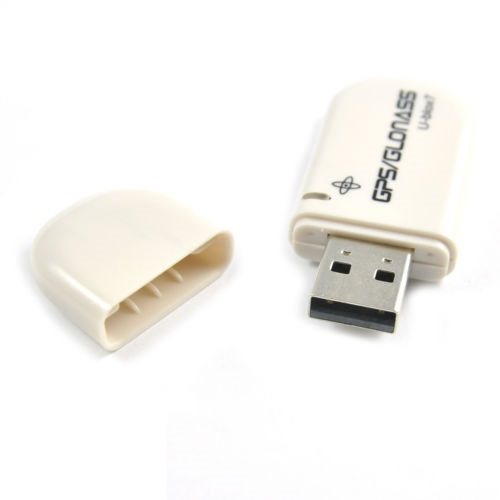

USB GPS Receiver USB GPS Dongle
Supported operating systems: Windows 8/7/10 Vista/XP/CE LINUX,
Access Root firstly VK-172 automatically adapt the baud rate, the baud rate has any data output
Support Google Earth
C / A code, 1.023MHz stream
Receive Band: L1 [1575.42MHz]
Tracking Channels: 56
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance :
2D plane: 5m [average]
2D plane: 3.5m [average], has DGPS auxiliary.
Drift: <0.02m / s
Timing Accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000 m
Maximum speed: 500m / s
Acceleration: <4g
Electrical properties:
Tracking sensitivity:-162dBm
Acquisition sensitivity:-160dBm
Cold Start Time: 29s [average]
Warm start time: 28s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Operating temperature: -30 to +80
